Gel Pen Ink Dye Base

Special features

  1. Very smooth in writing
  2. Water Base Ink
  3. Instant dry on paper
  4. Long shelf life

Component - Materials

  1. Very smooth in writing
  2. Water Base Ink
  3. Instant dry on paper
  4. Long shelf life

Physical Properties: Basic Colours

PropertiesBlueBlackRedGreen
Ref.SG 200 BLUSG 200 BLKSG 200 REDSG 200 GRN
Brookfield Viscosity at 25°C, 12 rpm by 63 LV Spindle (cps)2000 ±2002000 ±2002000 ±2002000 ±200
Sour Alkalinity (pH)9.28.899.988.86
Surface Tension (d/cm)37383939
Specific Gravity (g/cm³)1.04571.06221.0371.054
Water ResistanceFairFairFairFair
WritingSmoothSmoothSmoothSmooth
Tip Used (CRI / WI / ESSEM)0.5 - 0.6 mm0.5 - 0.6 mm0.5 - 0.6 mm0.5 - 0.6 mm

Special Colours Available

Certifications

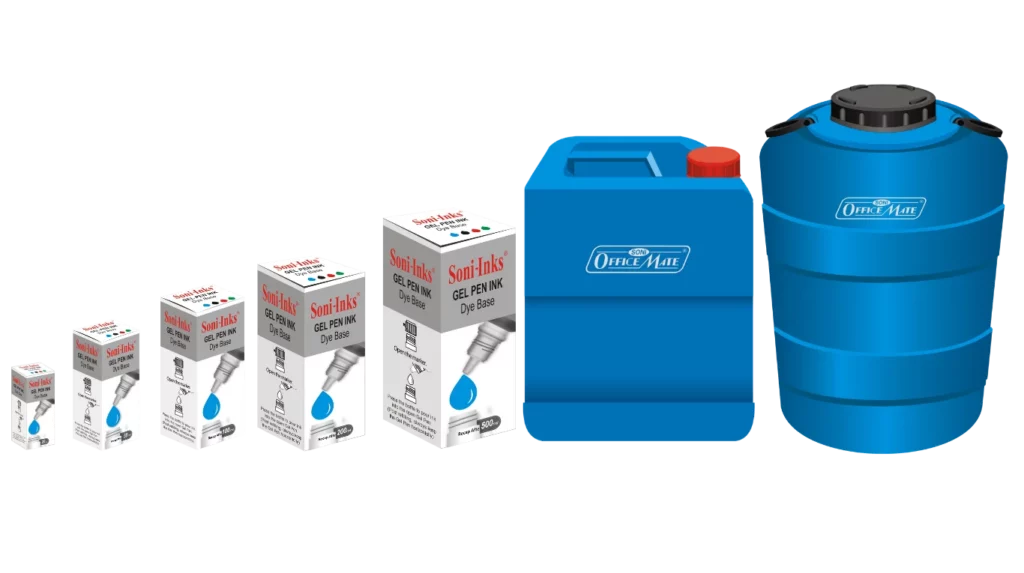

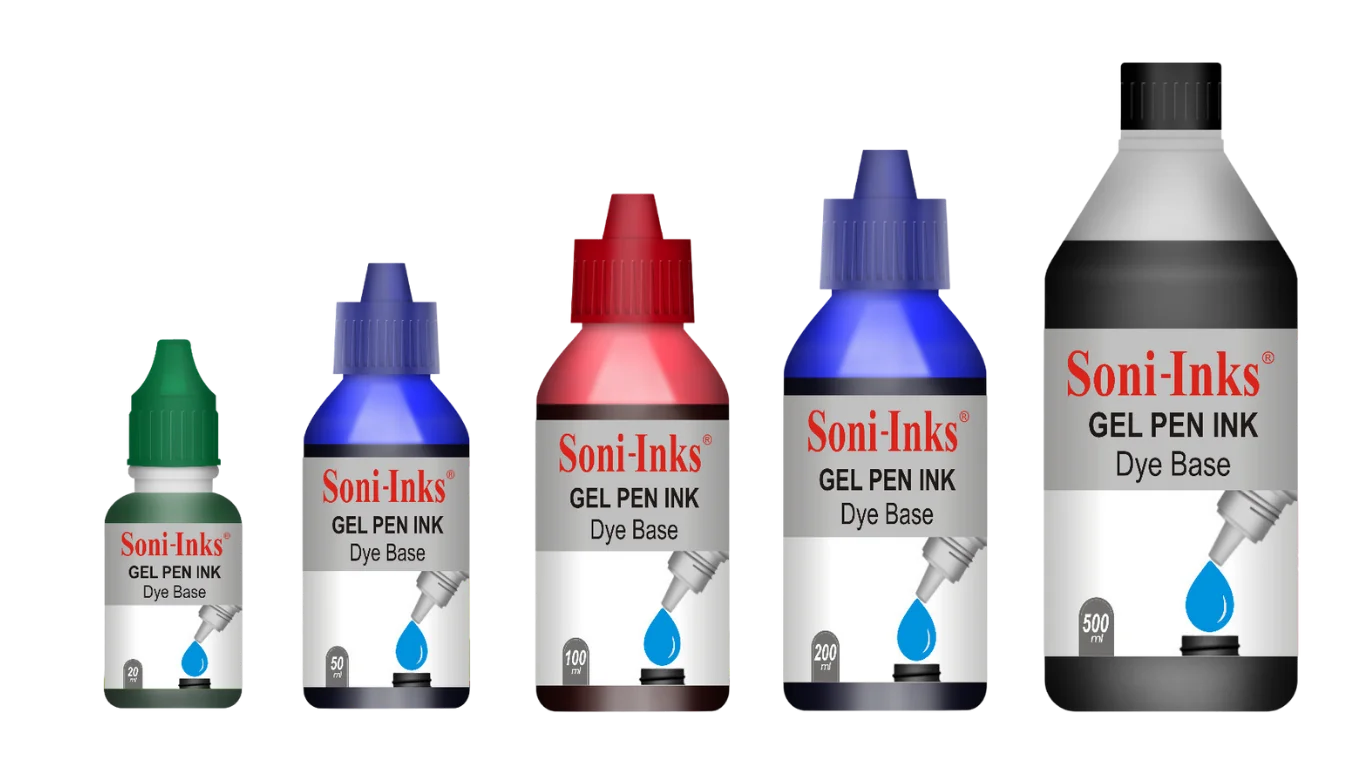

Available Packaging

Shelf Life And Storage Instructions

Shelf Life :

Minimum 2 years when stored in tightly sealed containers under proper conditions.

Storage Instructions :

  1. Store in tightly sealed containers.
  2. Keep in a cool and dry place.
  3. Avoid direct sunlight and excessive heat.
  4. Do not expose to freezing temperatures or high humidity.
  5. Shake or stir well before use if settled over time.

Ink Compatibility

  1. Compatible with rollerball and gel pen tips (including needle and conical types).
  2. Suitable for tip sizes ranging from 0.5 mm to 0.7 mm
  3. Works well in plastic refills with gravity-based ink feed systems.
  4. Ideal for pens using free-flow or controlled-flow mechanisms.
  5. Designed for use in dye-compatible writing systems for smooth, consistent writing.
  6. Performs well under continuous writing tests and standard temperature conditions.

Application Photos
