Ball pen ink Low viscosity (O.B.G.)

Special features

1. Very smooth in writing
2. No follower required

Component - Materials

1. Very smooth in writing
2. No follower required

Physical Properties: Basic Colours

PropertiesBlueBlackRedGreen
Ref.SB 400 BLUSB 400 BLKSB 400 REDSB 400 GRN
Brookfield Viscosity at 20°C, 12 rpm by 64 LV Spindle (cps)4200 ± 5004200 ± 5004200 ± 5004200 ± 500
Sour Alkalinity (PH)6.15.055.495.2
Surface Tension (d/cm)38393938
Specific Gravity (g/cc)1.09751.13451.13751.0256
Water ResistanceGoodGoodGoodGood
WritingSmoothSmoothSmoothSmooth
Pens kept at 50°C for 30 daysFlow OKFlow OKFlow OKFlow OK
Tip Used (CRI / WI / ESSEM)0.7 - 1.00 mm0.7 - 1.00 mm0.7 - 1.00 mm0.7 - 1.00 mm

Special Colours Available

Certifications

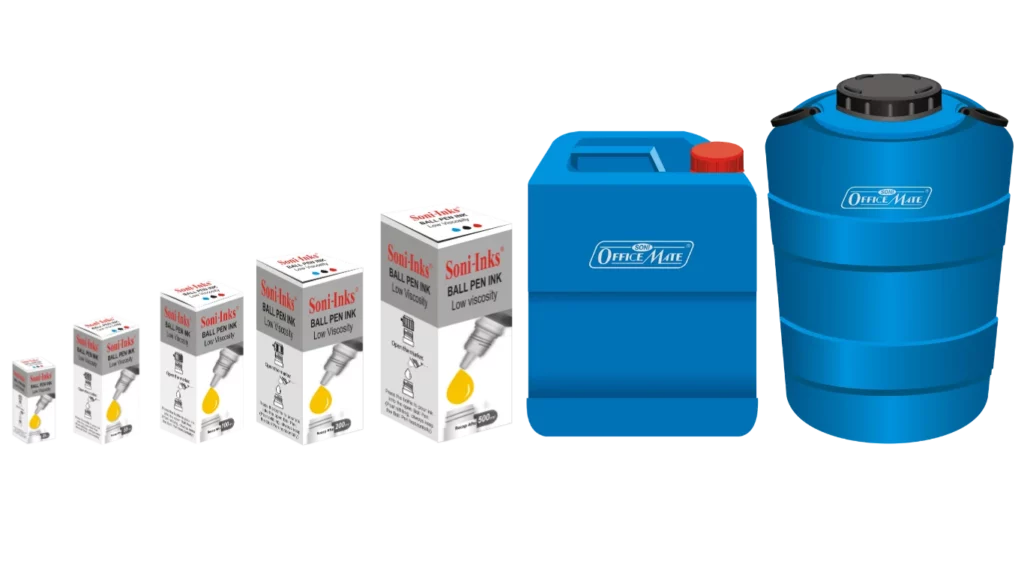

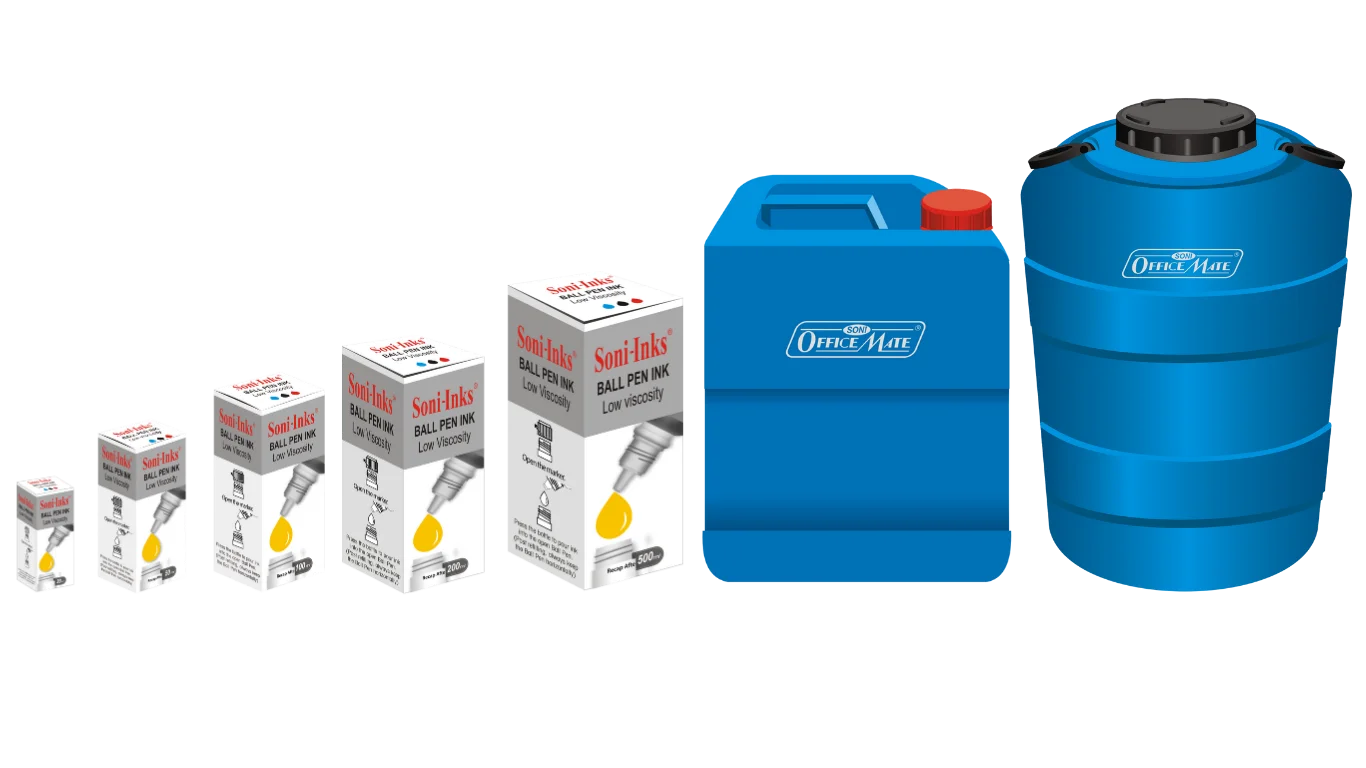

Available Packaging

Shelf Life And Storage Instructions

Shelf Life :

Minimum 2 years when stored under proper conditions in tightly sealed containers.

Storage Instructions :

  1. Store in a cool, dry and well-ventilated area.
  2. Keep containers tightly closed when not in use.
  3. Avoid direct sunlight and exposure to high temperatures.
  4. Recommended storage temperature: Below 30°C.
  5. Do not freeze the ink.
  6. Keep away from heat sources of heat or ignition.
  7. Stir well before use if stored for a long period.

Ink Compatibility

  1. Compatible with CRI tips.
  2. Compatible with IWI tips.
  3. Compatible with ESSEM tips.
  4. Suitable for tip sizes 0.7 mm to 1.00 mm.
  5. Performs well under high-temperature conditions (50°C for 30 days) – flow OK.
  6. Ideal for pen requiring smooth ink flow without a follower.
  7. Works well with standard colours : Blue, Black Red, Green.
  8. Also compatible with special colours: Orange, Pink, Violet, Brown, Light Blue, Yellow.
  9. Performs well under low-temperature condition freeze (5°C for 30 days) – flow OK

Application Photos
